MCP gateway

MCP (Model Context Protocol) is the common standard AI apps use to call tools. An MCP gateway gives AI apps such as Claude Code, Cursor and Claude Desktop one address where they find your tools and use them. Once it is connected, you can ask Claude “where is order NW-10428?” and it looks the order up in your system.

Create the gateway

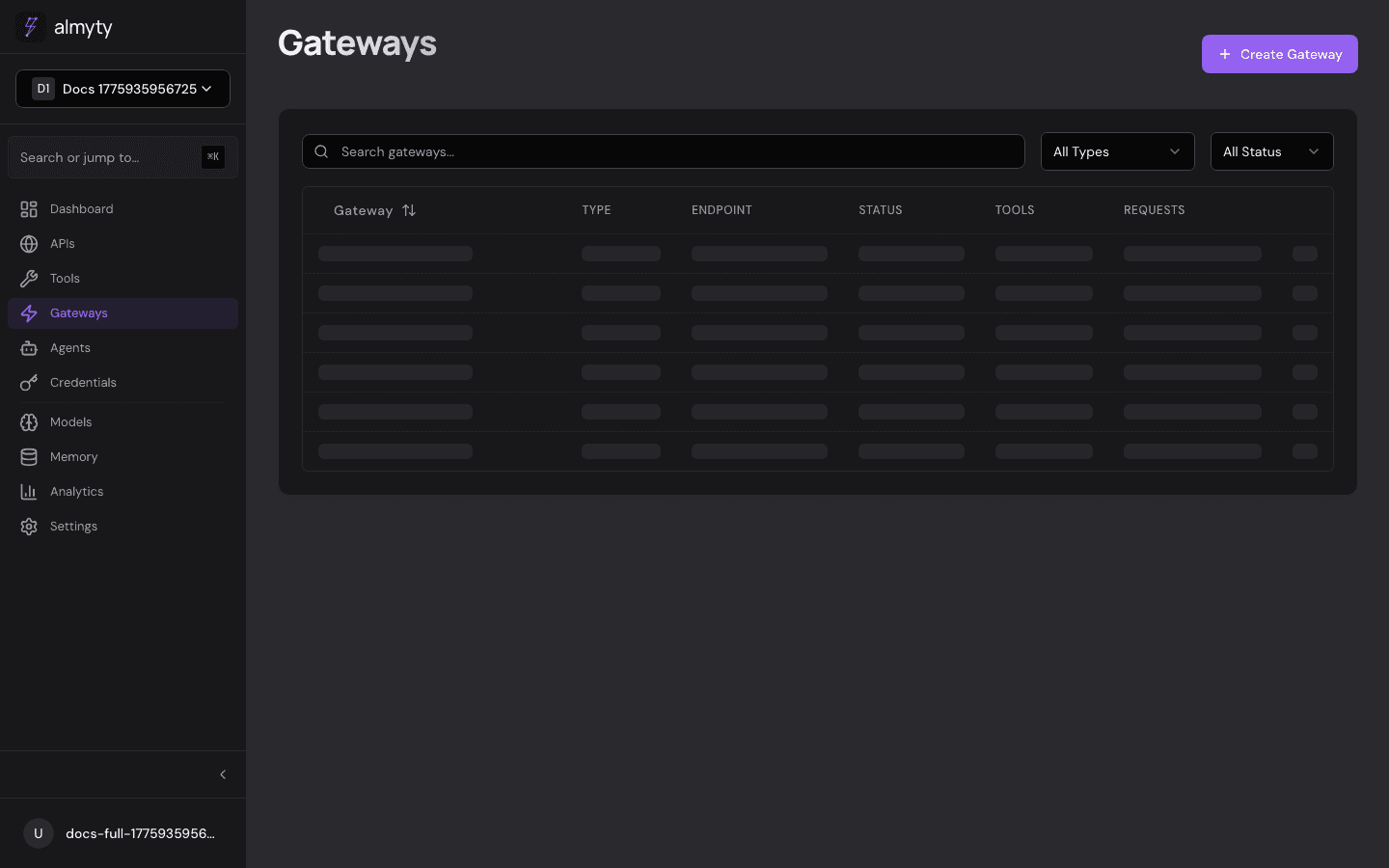

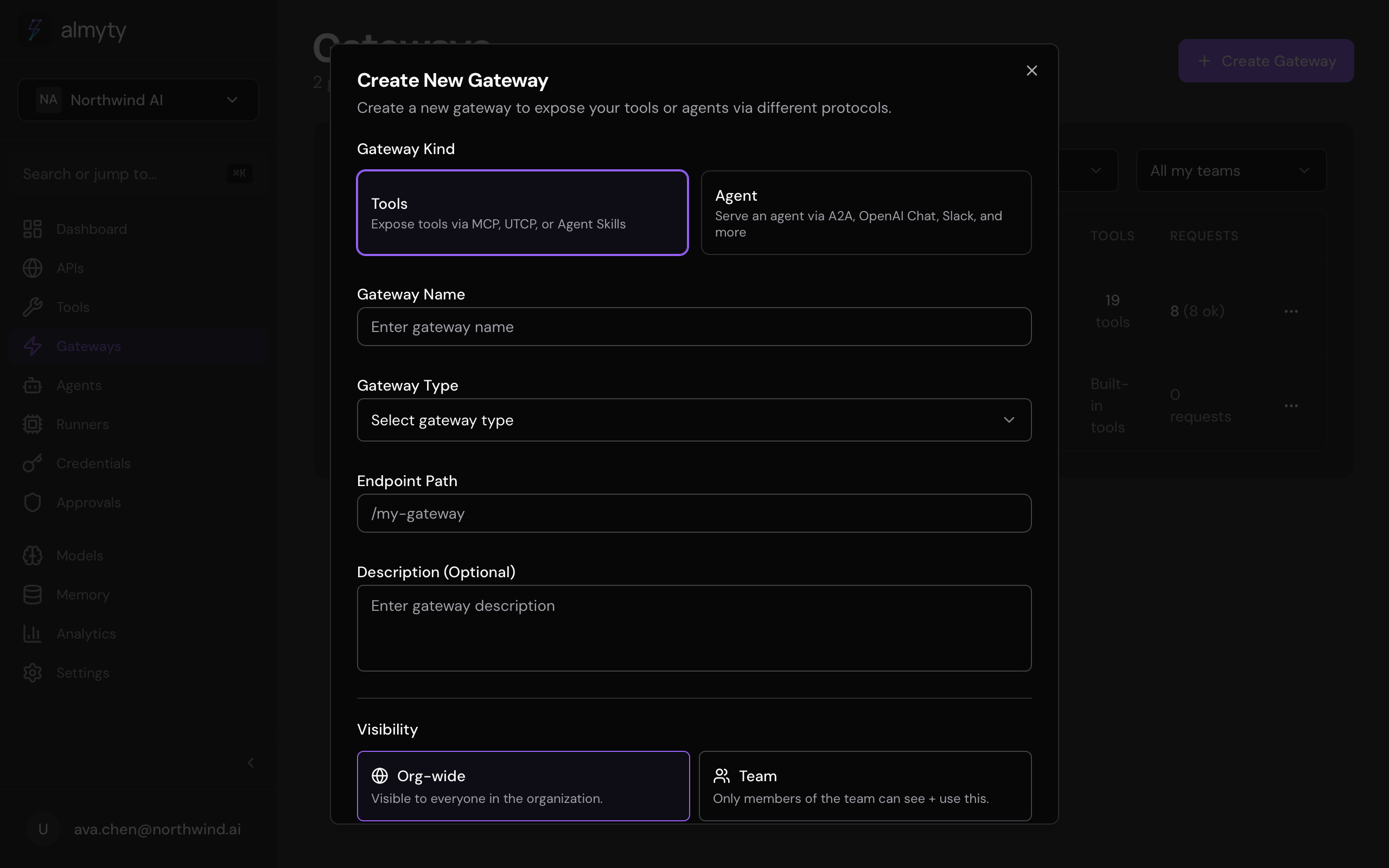

1. Open Gateways and click Create gateway.
2. Under Protocol, pick MCP.
3. Under Tools, pick a whole API or single tools. A draft tool can’t be offered until it is active.
4. Give it a Name and choose Who can use it. The default is internal access; Advanced changes the path and who can manage it.
5. Click Create gateway. For outside callers, choose Outside, protected and set up keys or company sign-in on the page that opens.

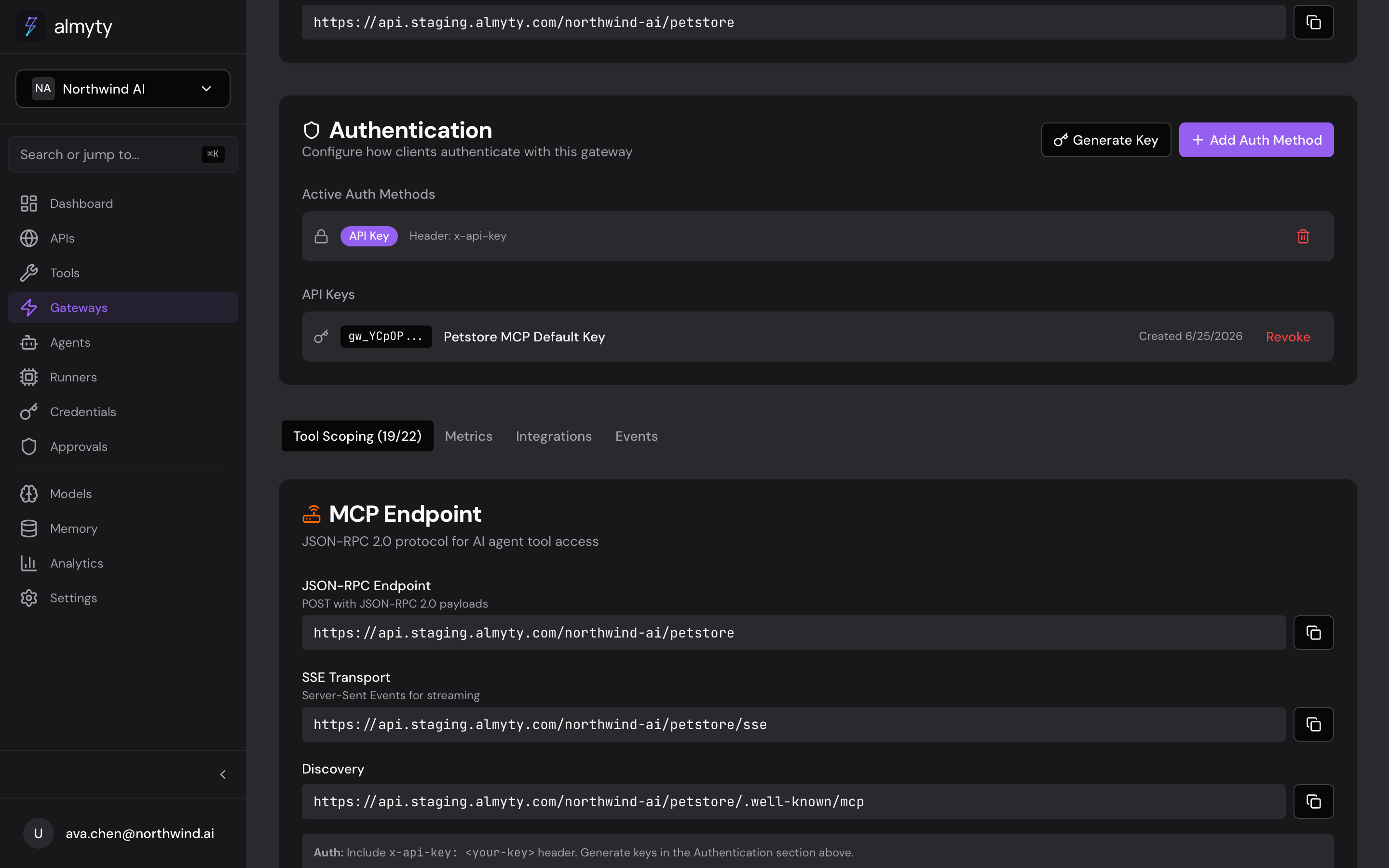

On the gateway’s page, Tool scoping changes which tools it offers, Who can use it manages endpoint access, keys and sign-in, and the Integrations tab has its addresses and the Quick setup for each app.

Connect an AI app

Pick your app in the setup shown after creating the gateway (or under Quick setup on the Integrations tab) and follow its one line of instructions: paste a command into a terminal for Claude Code, or a few lines into a settings file for Cursor or Claude Desktop. The app then lists the gateway’s tools and calls them when they help.

Need a key for a person or app? Choose Outside, protected, switch on Keys, then click New key under Who can use it.

Which apps and versions work

MCP has several versions, and AI apps move to new ones over time. An almyty gateway speaks the newest one, MCP 2026-07-28, and the two before it, MCP 2025-11-25 and MCP 2025-06-18, which is what today’s Claude Code, Cursor, Codex and Claude Desktop use. Apps still on the older 2025-03-26 and 2024-11-05 versions keep working too. Your app and the gateway agree on a version by themselves when the app connects; there is nothing to set and the address stays the same.

One old way of connecting is being retired: the separate streaming address (SSE) that MCP apps used in 2024. Gateways never offered it, and the newer MCP versions drop it. almyty’s own /mcp/sse address still answers for the few apps that need it and tells them it is deprecated; it goes away once nobody uses it.

What your app gets from the gateway:

• Readable tool names. Next to petstore_get_pet_by_id the app sees “Petstore get pet by id”.
• What a tool does to your data. Each tool says whether it only reads, changes something, or deletes something, so the app can ask you before a change. These are hints for the app; the gateway still applies your approval rules and security policies itself.
• Structured results. A tool that answers with a record returns it as data the app can read field by field, next to the usual text.
• Tool changes right away. An app on MCP 2026-07-28 hears when you add, remove, turn on or turn off a tool on the gateway, and refreshes its list without reconnecting.
• Sign-in without a setup step. With OAuth on the gateway, apps that support the newer sign-in (client metadata documents) connect with no registration first, and the sign-in page shows which website the app identified itself from. Apps that only support the older registration still work. See Gateway authentication.

For developers

The endpoint follows this pattern, and speaks MCP over HTTP (JSON-RPC 2.0 requests sent with POST):

https://api.almyty.com/{org}/{gateway-slug}

Only POST carries MCP: the gateway keeps no session and opens no stream of its own, so GET and DELETE on the endpoint answer 405 Method Not Allowed. A 2026-07-28 client that wants change notifications asks for them with a subscriptions/listen POST (see MCP 2026-07-28). The legacy HTTP+SSE transport (2024-11-05) is not served on gateways; it is deprecated in MCP 2026-07-28 (see Legacy SSE transport).

Claude Code

claude mcp add petstore --transport http https://api.almyty.com/acme/petstore \
  --header "x-api-key: your-gateway-key"

Claude Desktop

Add to claude_desktop_config.json (Settings, Developer, Edit config), then restart Claude Desktop:

{
  "mcpServers": {
    "petstore": {
      "command": "npx",
      "args": ["-y", "mcp-remote", "https://api.almyty.com/acme/petstore", "--header", "x-api-key:${ALMYTY_KEY}"],
      "env": { "ALMYTY_KEY": "your-gateway-key" }
    }
  }
}

Cursor

Add to .cursor/mcp.json in your project, or ~/.cursor/mcp.json for all of them:

{
  "mcpServers": {
    "petstore": {
      "url": "https://api.almyty.com/acme/petstore",
      "headers": { "x-api-key": "your-gateway-key" }
    }
  }
}

Clients that only speak stdio can run the gateway through a local proxy: see the MCP server CLI.

Once connected, the client calls tools/list and tools/call for you. Tools follow the MCP tool format:

{
  "name": "get_users",
  "description": "Retrieve a list of users with pagination",
  "inputSchema": {
    "type": "object",
    "properties": {
      "page": { "type": "integer", "description": "Page number" },
      "limit": { "type": "integer", "description": "Items per page" }
    },
    "required": []
  }
}

OAuth 2.1

With an OAuth 2.0 auth method on the gateway, discovery endpoints are served automatically:

https://api.almyty.com/acme/petstore/.well-known/oauth-authorization-server
https://api.almyty.com/acme/petstore/.well-known/oauth-protected-resource

A 401 carries a WWW-Authenticate header pointing at the protected resource metadata, so MCP clients start the OAuth flow by themselves. See Gateway authentication.

Protocol versions

How the version of a request is decided:

1. A request whose params._meta names io.modelcontextprotocol/protocolVersion is a 2026-07-28 request (below).
2. initialize: the gateway answers with the version the client asked for when it speaks it, otherwise with its newest legacy version (2025-11-25). It is never an error.
3. Every later request carries the MCP-Protocol-Version header, which the gateway follows. A request without the header is treated as 2025-03-26, as the specification says. A header naming a version the gateway does not speak gets 400 with -32022, whose data lists the supported versions.

From 2025-06-18 on, JSON-RPC batches are refused with 400 (-32600). 2025-03-26 and older still accept them.

A self-hosted install picks the versions it answers with MCP_PROTOCOL_VERSIONS (comma list, default all five).

MCP 2026-07-28

Every request stands alone: there is no initialize, no session and no Mcp-Session-Id. Each request carries in params._meta:

• io.modelcontextprotocol/protocolVersion (required) and io.modelcontextprotocol/clientCapabilities (required, may be {}); missing either is -32602 with 400;
• io.modelcontextprotocol/clientInfo (optional), which the request log records.

The HTTP headers must mirror the body; any disagreement is -32020 with 400. The first three are checked before authentication, the last when the tool is known:

• MCP-Protocol-Version equals the _meta version;
• Mcp-Method equals the JSON-RPC method (every request);
• Mcp-Name equals params.name (tools/call, prompts/get) or params.uri (resources/read). A value that is not plain ASCII is sent as =?base64?<base64 of UTF-8>?=;
• Mcp-Param-<Name> for each tool argument the tool’s input schema marks with "x-mcp-header": "<Name>" (reachable through properties only). The header must be present when the argument is, and carry the same value (numbers compare numerically, booleans as true/false).

server/discover answers supportedVersions, capabilities and instructions; a client asks it instead of guessing. Every result carries resultType: "complete" and the server’s name and version in _meta["io.modelcontextprotocol/serverInfo"]. The list results and resources/read also carry ttlMs (MCP_RESULT_TTL_MS, default 60000) and cacheScope: "private": a list depends on who asks, so a shared cache must not reuse it.

ping, logging/setLevel, resources/subscribe and the other methods 2026-07-28 removed are -32601 with 404, which is how a client that speaks both eras tells the two apart. 2026 clients do not get the logging capability. A tool’s structuredContent may be any JSON value (below 2026-07-28 only an object).

subscriptions/listen replaces the server stream. It is a POST whose response is an event stream: the first message is notifications/subscriptions/acknowledged with the subset of the requested notifications the gateway will send, and every message carries the listen request’s id in _meta["io.modelcontextprotocol/subscriptionId"]. A gateway honours toolsListChanged, and advertises tools.listChanged: true to 2026 clients: assigning or removing a tool, activating, deactivating, editing or deleting one, and re-syncing an MCP source all send notifications/tools/list_changed to every open stream of the gateways involved, on whichever server holds the stream (Redis pub/sub). The stream sends a keep-alive comment every MCP_LISTEN_KEEPALIVE_MS (default 15000) and ends with a complete result after MCP_LISTEN_MAX_SECONDS (default 3600); the client opens a new one. Legacy clients keep listChanged: false.

The gateway page shows no separate discovery address: MCP defines none, and a client asks the endpoint itself with server/discover.

A call that an approval rule holds can be approved inside the call by a 2026-07-28 client that declared elicitation, when its user could approve it on the Approvals page: tools/call answers resultType: "input_required" with an approve-or-reject form and a sealed requestState, and the retry returns the call’s result. Everyone else gets the “waiting for approval” answer with an _approvalId, as before. See Approvals. Long agent runs (tasks, get_run) are on the management server: see Control almyty via MCP.

Legacy SSE transport

The HTTP+SSE transport of MCP 2024-11-05 (a long-lived GET stream plus a separate address to POST messages to) is deprecated in MCP 2026-07-28 (SEP-2596). Gateways never served it. almyty’s organization endpoint still does, for clients that have not moved to Streamable HTTP:

Every response on these routes carries the standard deprecation headers (RFC 9745), so a client’s tooling can say so:

Deprecation: @1785196800
Link: <https://docs.almyty.com/gateways/mcp#legacy-sse-transport>; rel="deprecation"; type="text/html"

/mcp lists the transport in deprecatedTransports. The request log records the protocol version of every MCP request, which is how almyty sees whether anyone still uses these routes; they are removed once nobody does. Move a client to Streamable HTTP: POST https://api.almyty.com/mcp, or a gateway’s own address.

Origin

A request that carries an Origin header must come from the dashboard, the API’s own origin, or an origin in MCP_ALLOWED_ORIGINS (comma list); anything else gets 403 with an id-less JSON-RPC error, before authentication. Requests without Origin (Claude Code, Cursor, curl, the stdio proxy) are not affected. Outside production, MCP Inspector’s local origin (http://localhost:6274) is allowed.

Tools

tools/list returns the gateway’s tools sorted by name, then id, so the list is the same on every call. Each tool carries:

Annotations come from the tool’s stored side-effect class (see Tools, for developers): readOnlyHint for a tool that reads, destructiveHint for one that deletes, openWorldHint unless it is an LLM tool, and idempotentHint where the HTTP method is idempotent. A person can set the class on the tool’s page; a tool from an MCP source keeps the annotations its server declared.

tools/call returns the result as a text block and also as structuredContent: for a 2025-06-18 or 2025-11-25 client when the result is a JSON object, for a 2026-07-28 client whatever JSON it is. When the tool declares an outputSchema, the result is checked against it first; a result that does not match comes back as a tool error that carries the data, so the client does not reject it. Invalid arguments, a failing upstream API and a refused call are tool errors (isError: true) the model can read and act on. An unknown tool is a protocol error, -32602.

tools/list is cached for MCP_TOOLS_LIST_CACHE_SECONDS (default 60; 0 turns the cache off). Gateway traffic is also limited per client by UNIFIED_ENDPOINT_RATE_LIMIT requests per UNIFIED_ENDPOINT_RATE_TTL_SECONDS (defaults 60 and 60), on top of each gateway’s own limits.

Request log

Every MCP request’s row in the request log records the protocol version, how it was decided (modern for a 2026-07-28 request, legacy when negotiated or named by the header, assumed without a header), the method, the outcome and the client’s name and version (metadata.mcp). A 2026-07-28 client names itself on every request; older clients only on initialize, and the row’s User-Agent identifies them after that.

A 2026-07-28 request may carry W3C trace context in _meta (traceparent, tracestate, baggage). A well-formed one is kept, not followed: it is stored as metadata.mcp.trace on the request log row, and as metadata.trace on the tool execution and audit rows written while the request runs, so you can join our rows to your own trace.

Conformance

CI runs the official MCP conformance suite  against a seeded gateway for 2025-11-25 and 2025-06-18 and blocks a merge on any unexpected failure. The scenarios that need the reference server’s fixtures (tools that return images or audio, send progress or log messages mid-call, or ask the client for sampling or elicitation; the test:// resources and test_* prompts) are listed with reasons in backend/scripts/mcp-conformance/expected-failures-2025-11-25.yml. MCP Inspector and the official SDK client at each claimed version run in the same job.

The same job runs the suite’s 2026-07-28 requirements against its own list, expected-failures-2026-07-28.yml (the same fixtures, plus the multi-round-trip scenarios this gateway does not serve yet). It does not block a merge until a stable release of the suite covers 2026-07-28. MCP Inspector also connects in the modern era.

Error codes

MCP errors follow JSON-RPC 2.0:

-32602 also answers an unknown tool, and a resource or prompt that does not exist, on every version: data carries the uri or name asked for. An unsupported MCP-Protocol-Version header is -32022 with 400 on every version. A refused batch is -32600 with 400, and a refused Origin -32600 with 403. Below 2026-07-28 every other answer is 200. -32602 also answers an unknown tool. A resource or prompt that does not exist is -32001 today (it moves to -32602 with MCP 2026-07-28 support). -32600 comes with HTTP 400 for a refused batch or an unsupported MCP-Protocol-Version, and with 403 for a refused Origin.
